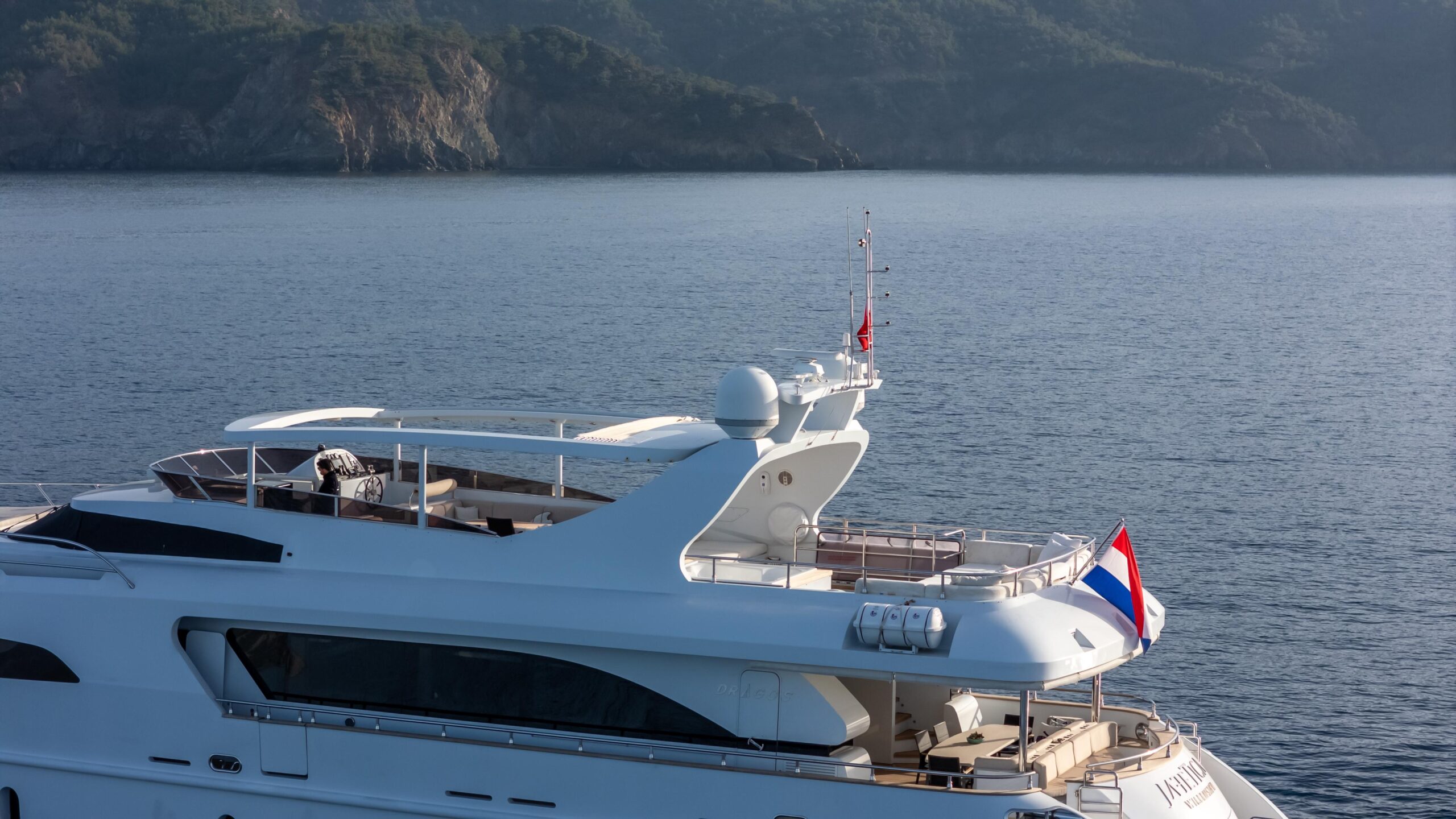

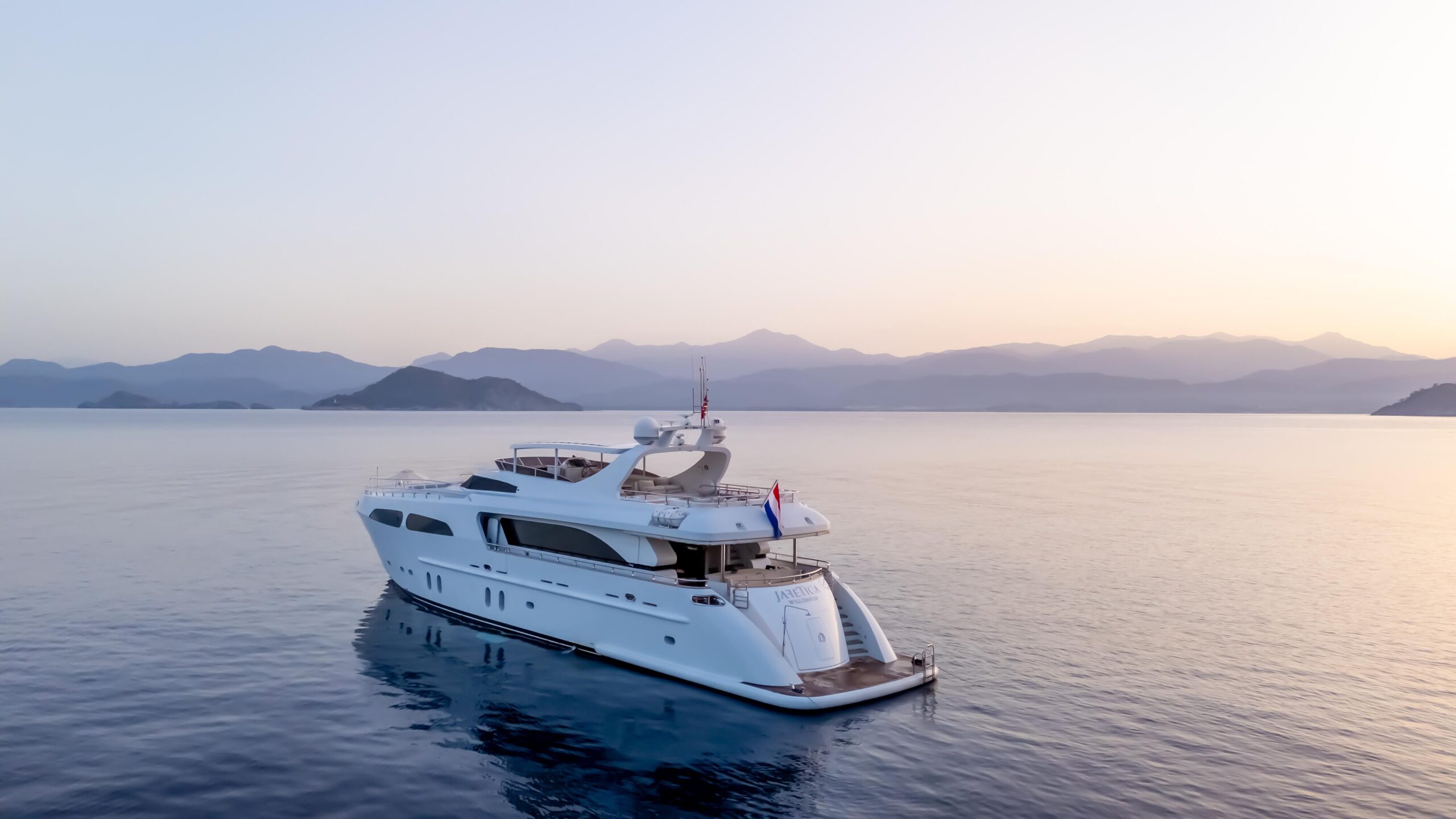

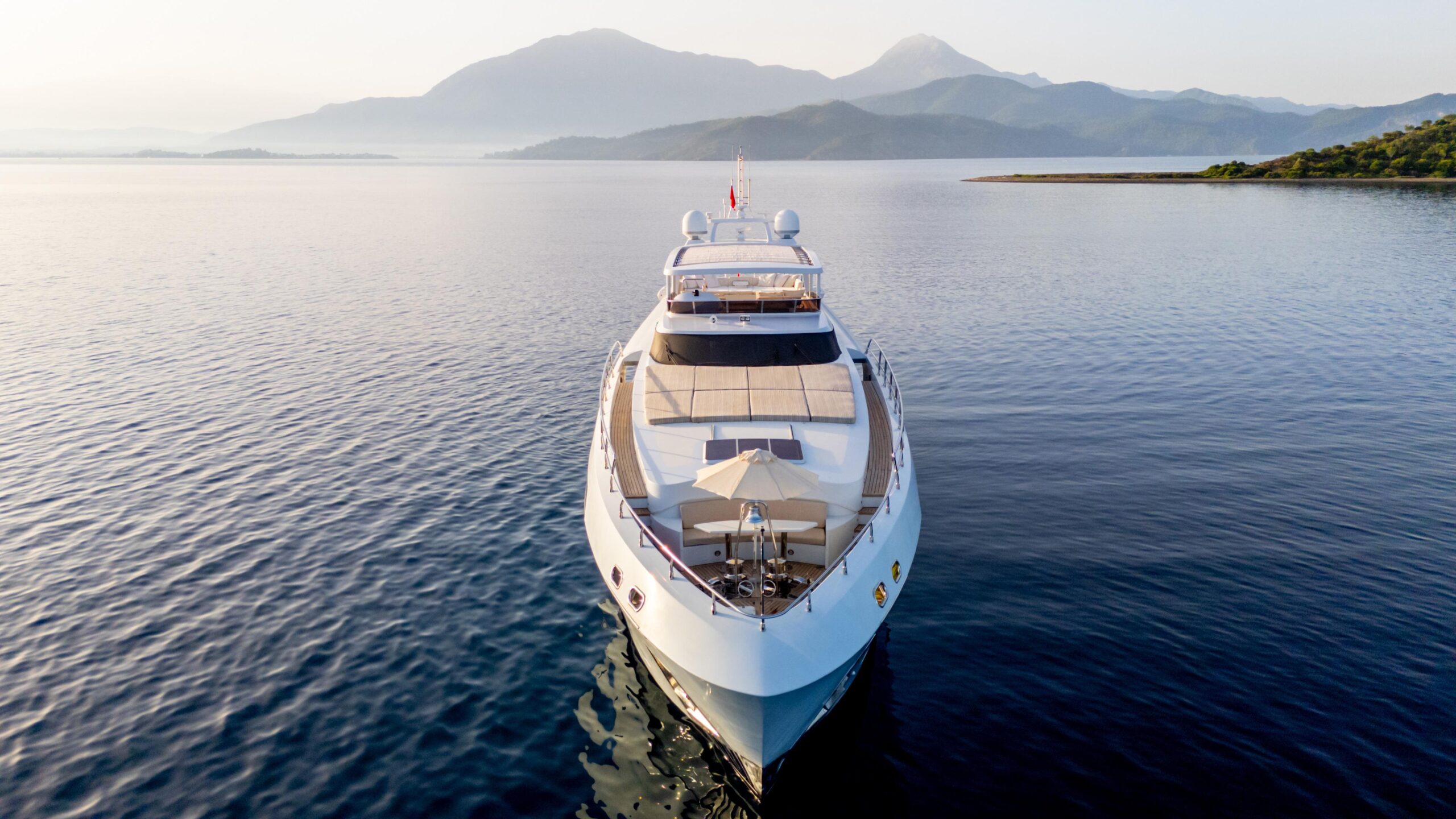

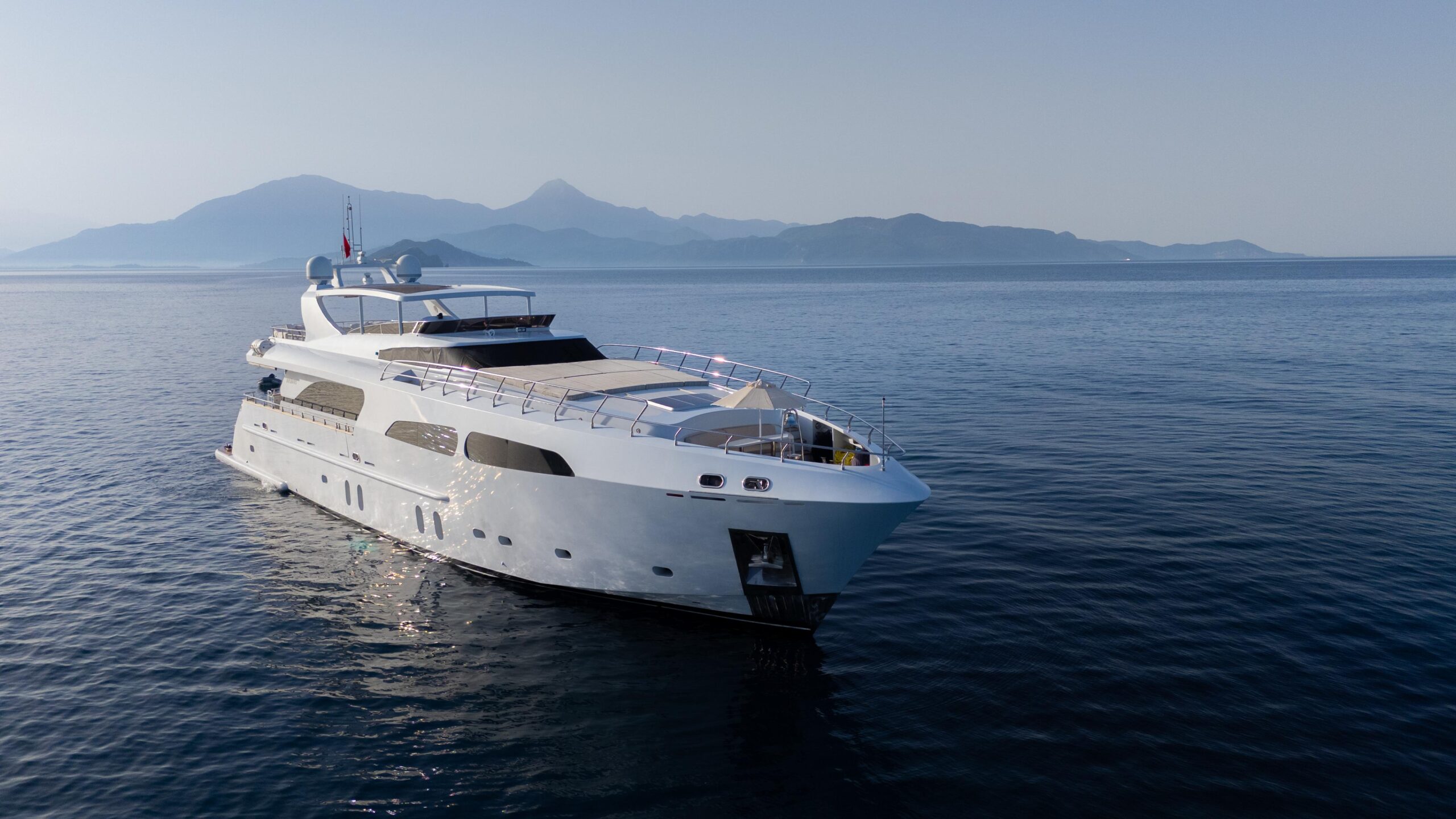

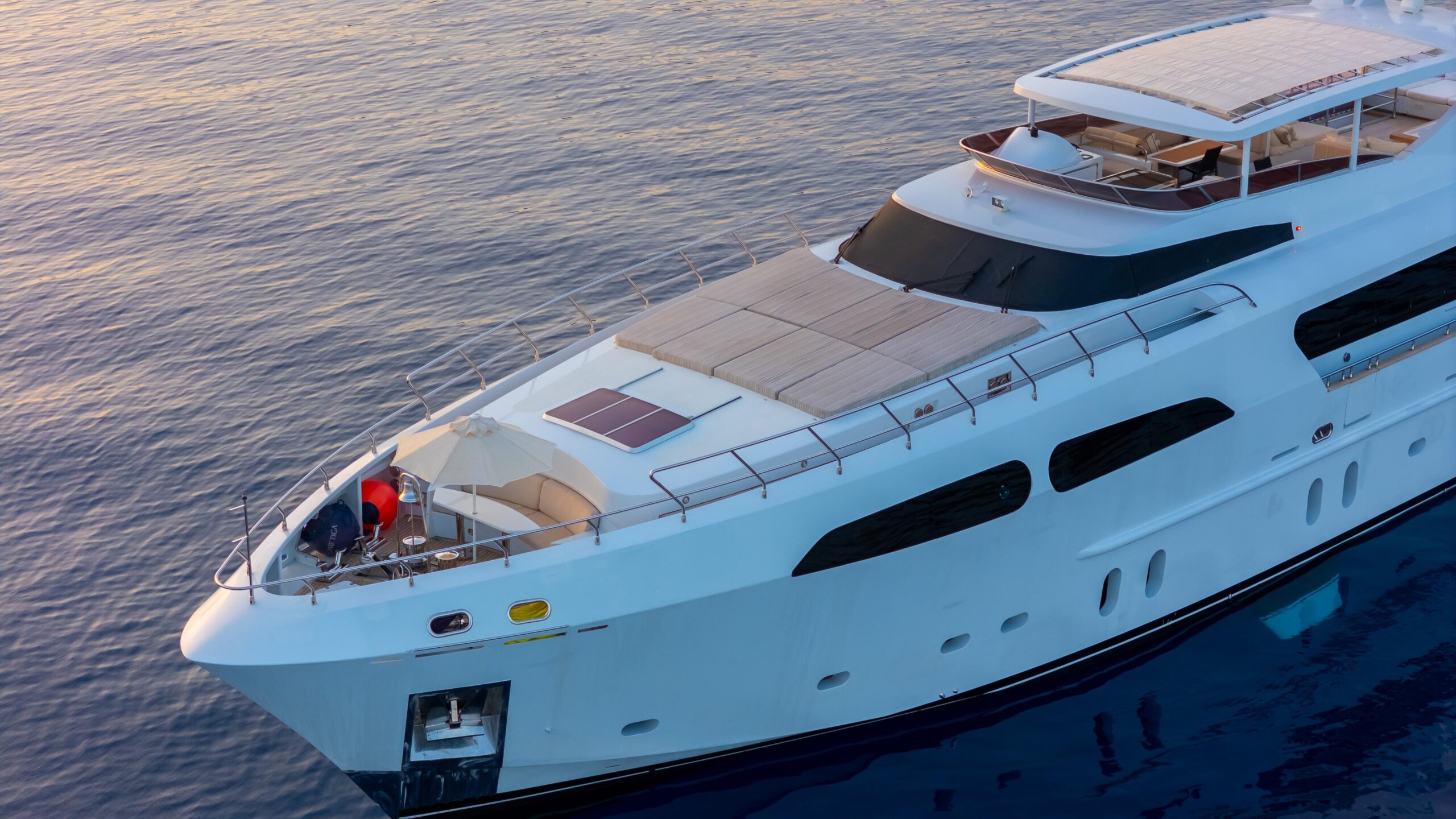

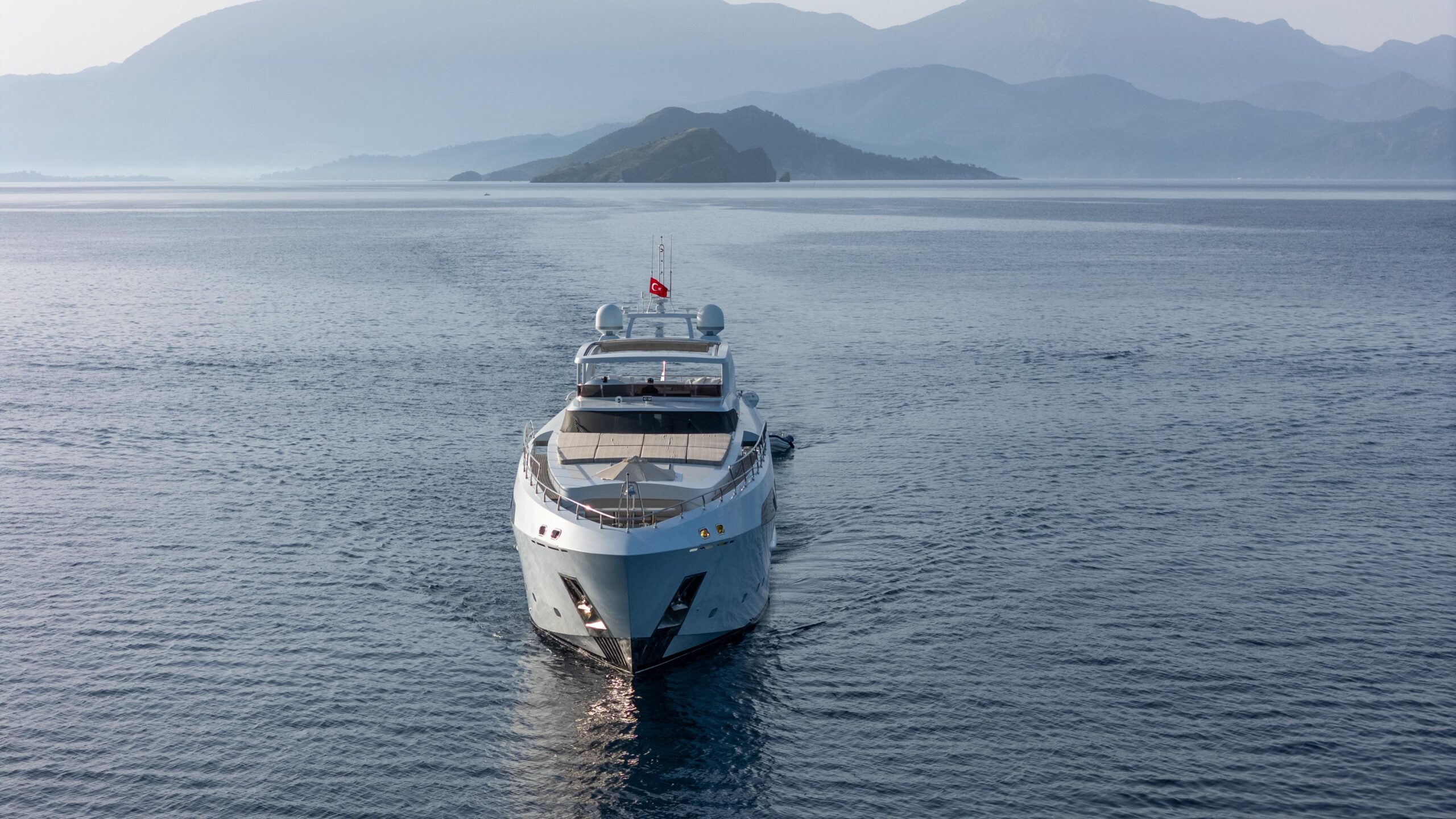

2012 Dragos Jafe Tica

JAFE TICA

SPECIFICATION

TYPE Motor Yacht

FLAG Curacao

DIMENSIONS Length O.A. 35.57 metres (116.7ft)

Beam 7.05 metres (23.13ft)

Draft 2.4 metres (7.87ft)

TONNAGE 233 Gross

69 Net

YEAR BUILT 2012

BUILDER Dragos

NAVAL ARCHITECT Dragos Yachts

INTERIOR DESIGNER Emrah Keser

EXTERIOR DESIGNER Koray Ünsal

CONSTRUCTION Steel Hull / Aluminum

CLASSIFICATION Built to RINA C ✠HULL ●MACH - Ych ; short range

MACHINERY

MAIN ENGINES 2x MTU 12 V 2000 Diesel M70 1055 HP - 786kW

ENGINE HOURS August 2025:

Port: 2,570 hrs

Stbd: 2,570 hrs

GEAR BOXES Data Hidrolik

SHAFTS 100

PROPELLERS 4 Blade Propellers

SPEEDS & FUEL 10 Knots Cruising - 70 Litres/Hours

CONSUMPTIONS 15 Knots Top - 200 Litres/Hours

RANGE 3100nm

AUXILIARY MACHINERY & ELECTRICAL SYSTEM

MAIN GENERATORS 1 x 60kW Westerbeke

2x Onan 27kW & 40kW

GENERATOR HOURS August 2025 :

Westerbeke 60kW: 10,559 hrs - 12 litres/hour

Onan 27 kW : 11,312 hrs - 5.5 litres/hour

Onan 40 kW : 2,738 hrs - 7 litres/hour

ELECTRICITY

SHORE POWER 380 inputs / 380 outputs % / 28kW

BATTERIES EMC Light 24V 520A VART - Night Batteries 24V 100A Sunshine 12x

TANK CAPACITIES (approximate)

FUEL 42,500 lt - 11,227 Gallons

WATER 6,000 lt - 1,585 Gallons

WATERMAKERS 2 x Dessalator Compact 90 200 litres/hour each (Gallons)

CLEAN LUB OIL NONE

DIRTY LUB OIL NONE

GREY WATER 4,000 lt - 105,6 Gallons

BLACK WATER 4,000 lt - 105 Gallons

ANCILLARY EQUIPMENT

STEERING SYSTEM

RUDDER ANGLE INDICATORS 40/30

BOW THRUSTER Thruster BT 120S

STABILIZERS WESMAR Digital Stabilizer DSP 4800

FUEL FILTERS 4 main / 3 generator

FUEL OIL SEPARATOR Alfa Laval

OIL/WATER SEPARATOR Head Hunter

BILGE PUMP 2 x 380V

FIRE PUMP 1 x 380V

BOILERS 2 x Beko 60 litres

SEWAGE TREATMENT NONE

WC's Electrical

AIRCONDITIONING 3 x Webasto, 216.000 BTU total

VENTILATION Fresh Air

SAFETY & SECURITY EQUIPMENT

SAFETY -

MEDICAL Emergency Heart Defibrillator

FIRE FIGHTING Novec 1230 GAS

ALARMS & MONITORING TYCO

SYSTEMS

SECURITY Fire Detectors, Smoke Detectors and Fire Extinguishers - in accordance with RINA Standard
