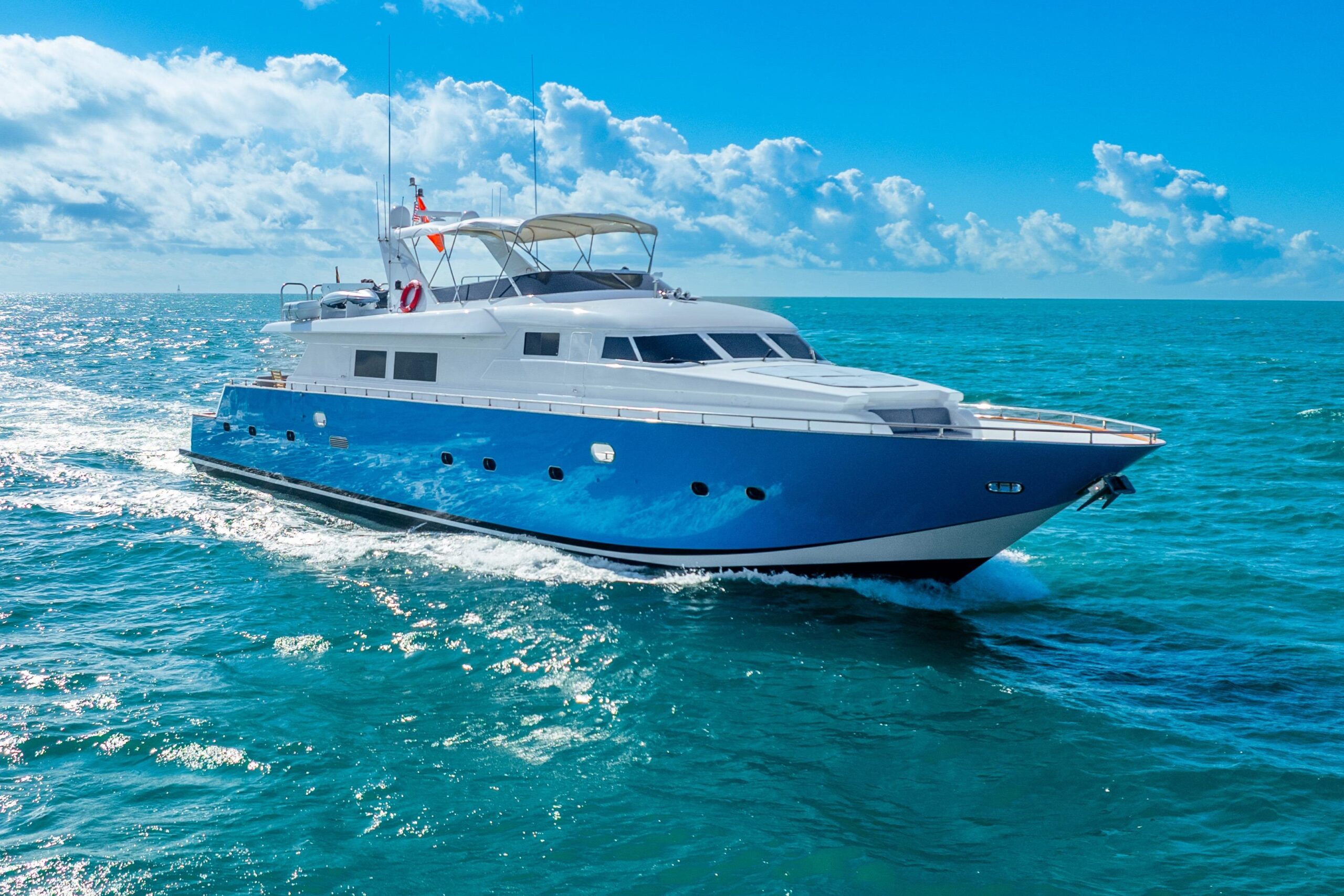

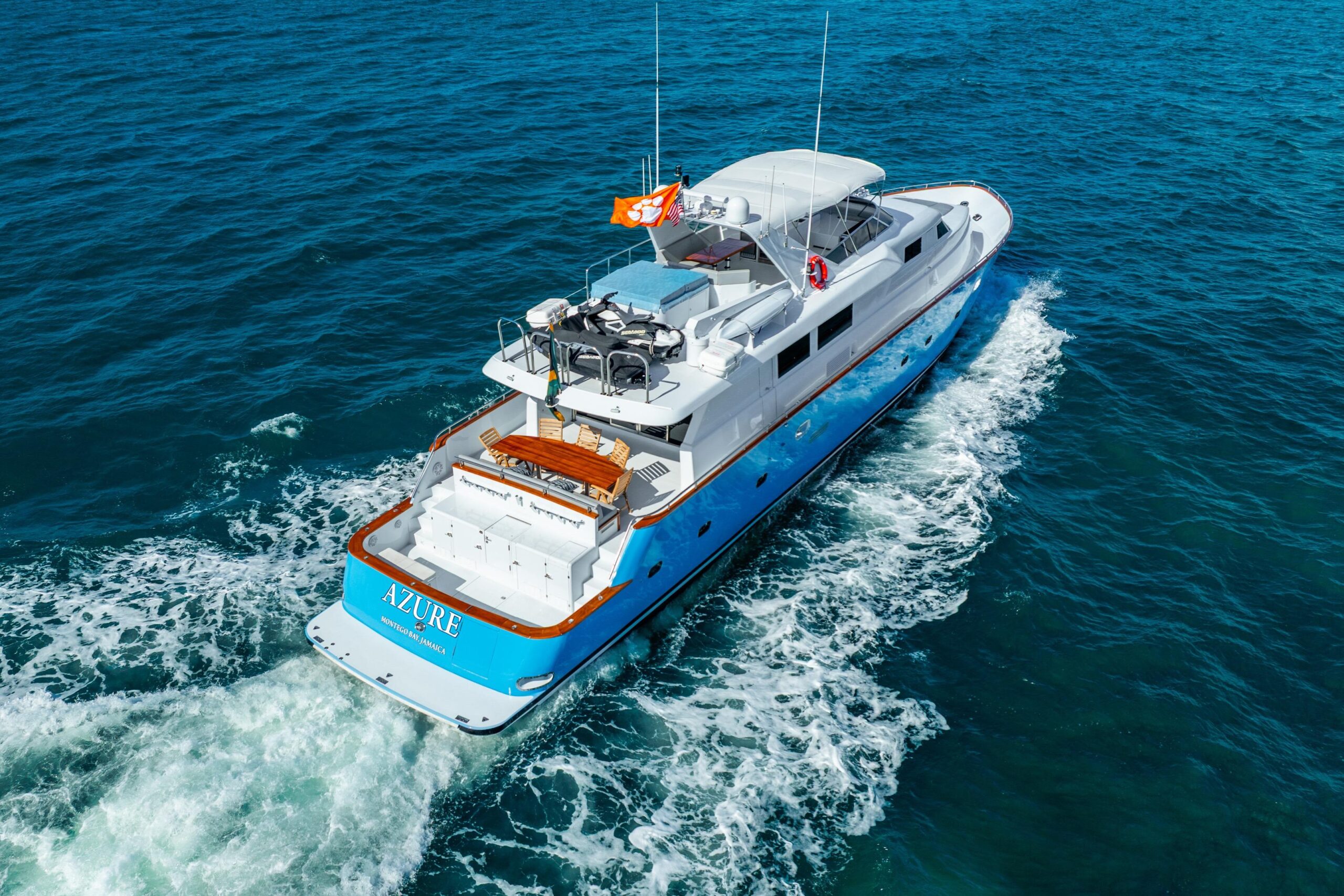

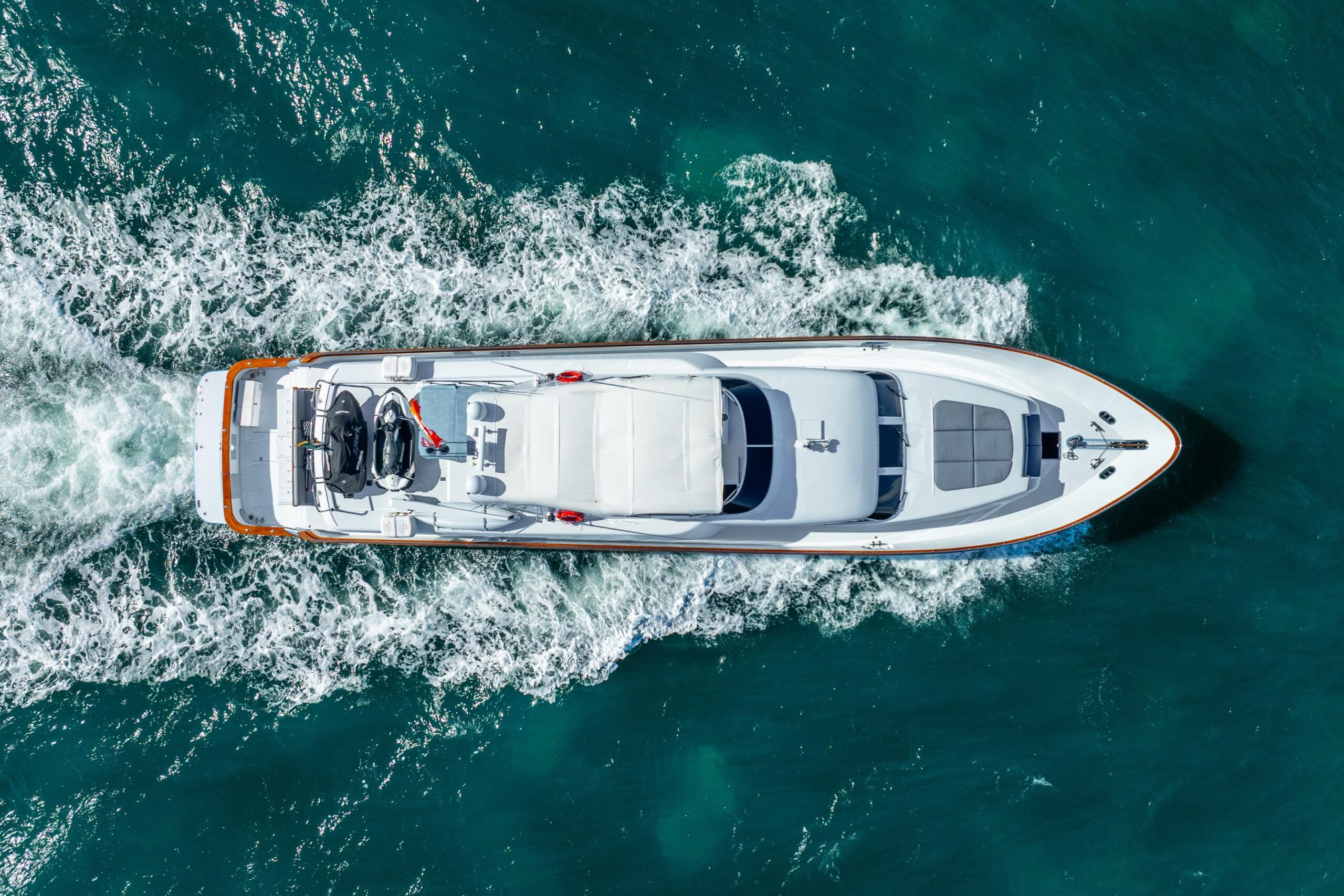

1991 Maiora Planning "AZURE"

GRP hull and superstructure

General
Length Overall (L.O.A.):

• 97.00 feet
• (29.60 meters)

Beam (molded):

• 20.98 feet
• (6.40 meters)

Draft (loaded):

• 4.50  feet
• (1.40 meters)

Tonnage: 118 gross


Capacities
Fuel Capacity:

• 2,550 US Gallons
• (9,652 liters)

Water Capacity:

• 600 US Gallons
• (2,771 liters)

Watermakers:

• 2,000 US Gallons / Day

Speed
Maximum:

• 22.0 knots
• 95 US Gallons /hr
• 590 nm
• 2,100 RPM

Cruising:

• 16.0 knots
• 45 US Gallons /hr
• 905 nm
• 1,700 RPM

Economical:

• 9.0 knots
• 12.5 US Gallons /hr
• 1,800 nm
• 1,000 RPM

Main Engines
Engine Type: (2) Detroit Diesel 16V 92TA @ 1,440 Hp each
Gearboxes for Main Engines: ZF 195P




Generators & Electricity
Output: 120/240 V
Generators: (2) 32kW Kohler
Generator Fuel Consumption: 2 gal / hr
Shore Power:

• (2) Charles C-Power IsoBoost 100
• Single phase 240V 100 amp

Batteries: Engine, Generator, House and Service

Air Conditioning
Type: Seven (7) Dometic compressors with twelve (12) Dometic air handlers

Other Machinery
Watermakers: Spot Zero XZ II
Stabilizers: Naiad Dynamics
Bow Thruster: Naiad Dynamics
Steering System: BSC Aron AD3E04CMB
Sewage System: N/A; (Holding Tank w. Headhunter Tank Sentry)
Fresh Water System: Spot Zero XZ 11, (2) Headhunter Mach 5 Pumps

Communication Systems
WiFi:
Starlink
VHF:

• (1) Icom IC-M330
• (2) Icom M-510

Satellite Phone: Iridium KRID0015L

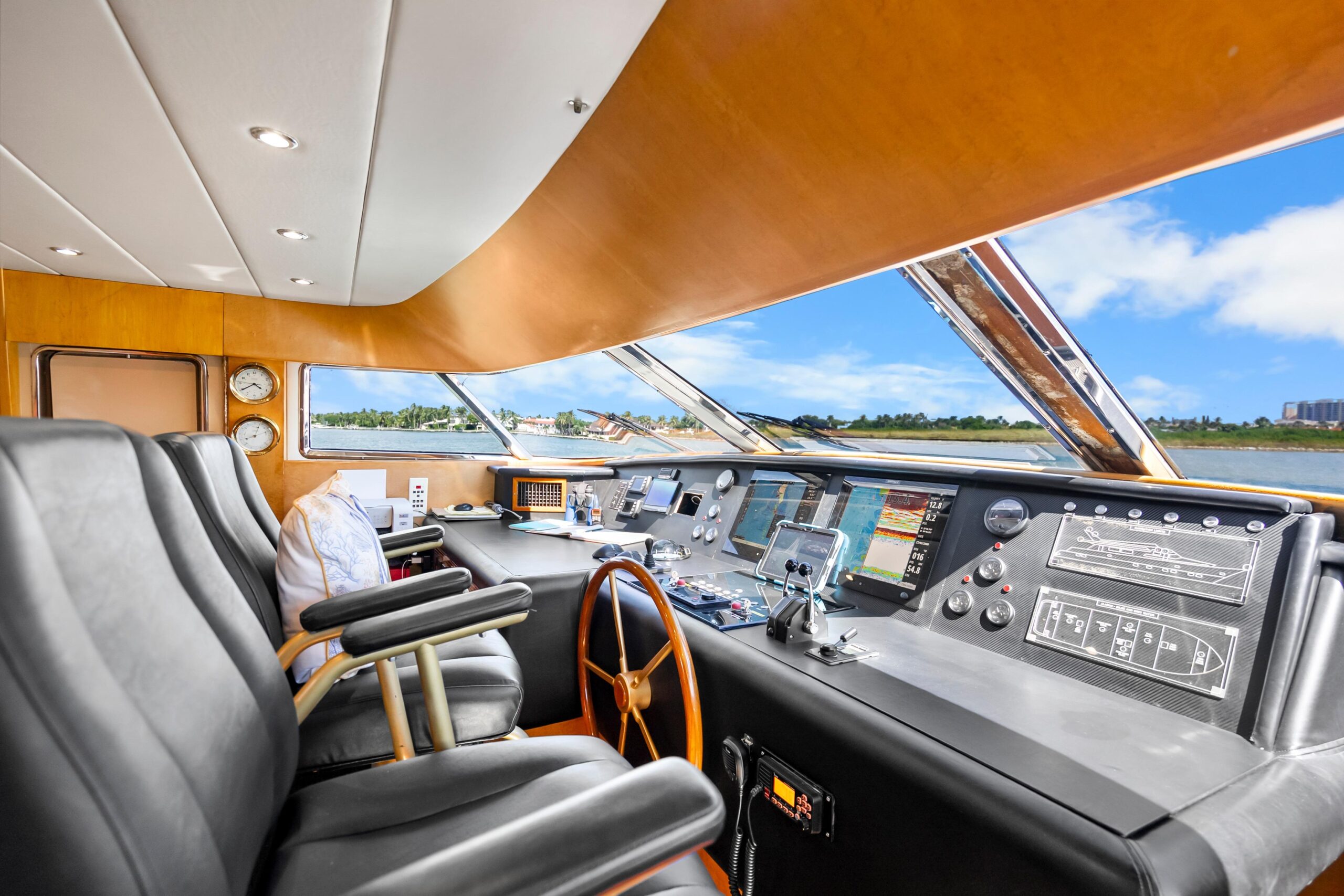

Navigation Systems
Radar: Simrad
Magnetic Compass: (2) Ritchie SS-5000
Auto Pilot:

• Simrad NAC-3
• (2) Simrad AP48

Depth Sounder: Simrad BSM-2
GPS: (4) Furuno, Garmin, Simrad, Simrad AIS Simrad NAIS-500
Ships Computer:

• Simrad NSO-II Marine Processor
• (3) Simrad Displays
• (NSO Evo 2)
• Nobeltec TZPro Ver.5 Nav PC

Entertainment System:
a. Video Equipment
TV's:

• (4) LG TV's
• (2) Roku smart tv's
• Apple TV's

b. Audio Equipment
Stereo's:

• Marantz
• (4) Fusion

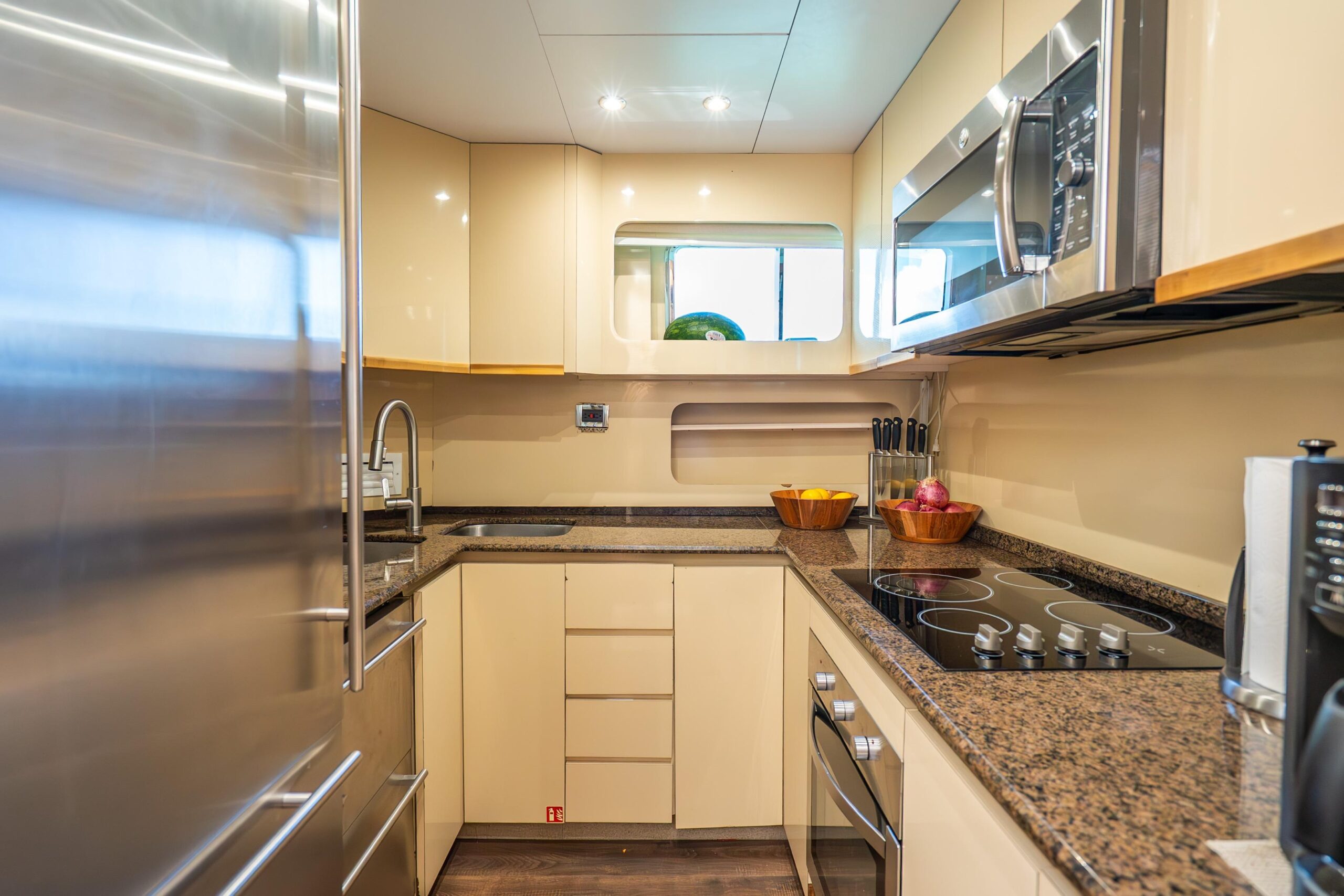

Main Galley Equipment
Cooking Equipment:

• Magic Chef cooking plate
• Empava oven
• GM microwave

Refrigeration/Freezer: Sub-Zero


Additional Galley Equipment
Refrigeration/Freezer:

• Freezer Fridge
• (3) drink cooler fridges
• Wine cooler
• (3) ice makers

Laundry Equipment
Main Laundry Equipment: Haier washer/dryer

• (2) Seabobs F5

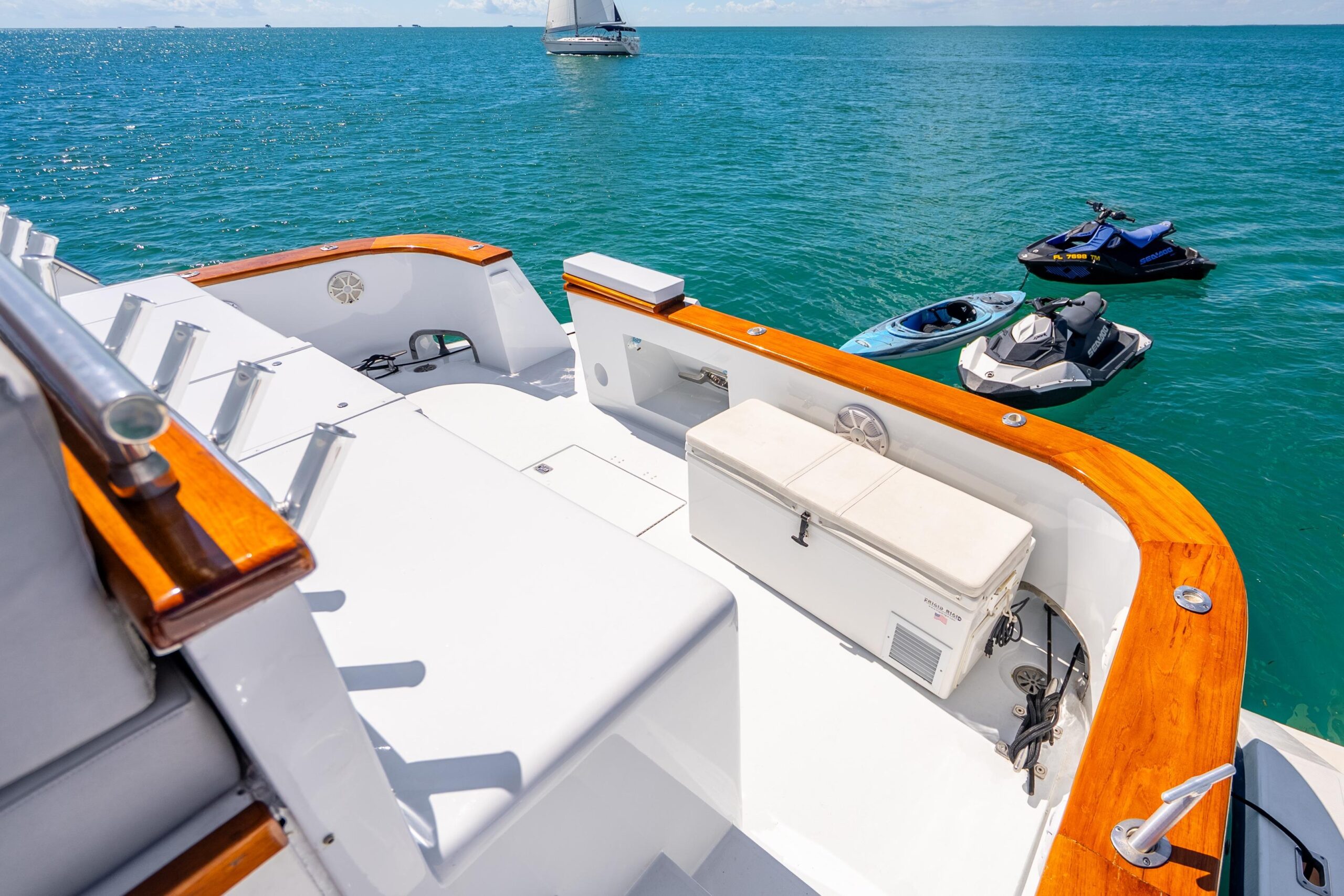

• (2) Jet ski Seadoo Spark
• (2) inflatable paddle boards
• (2) inflatable kayaks
• Inflatable dock
• Snorkeling gear

Anchor Windlass System: Maxwell SP2908 2000W
Anchors: (1)
Anchor Chain: (1)
Boat Crane and Davits: (1) SWL 750 lbs
Passerelle: N/A; Side boarding ladder (removable)
Swimming Platform: Cockpit

Security Equipment
CCTV System:
DVR Reolink Camera System
Cameras:
Reolink Cameras
Monitors:
Remote access via app


Fire Fighting Equipment
Fire Control System: CO2 Suppression System
Fire Extinguishers: Twenty (20) portable fire extinguishers
Alarms: CO2 / Smoke Detectors

Safety Equipment
Life Rafts: (2) Revere, SOLAS B, 8 persons each.
Life Rings:

• (4)
• (2) w. Line and MOB Light

EPIRBS: (2) ACR Global Fix V4
SART: ACR Pathfinder Pro
VHF: (2) Handheld VHF IC-GM1600
Flares: (6) Red Rocket MK8A
Medical Equipment:

• MCA Cat B Medical Kit
• Defibrillator
• Oxygen Tank

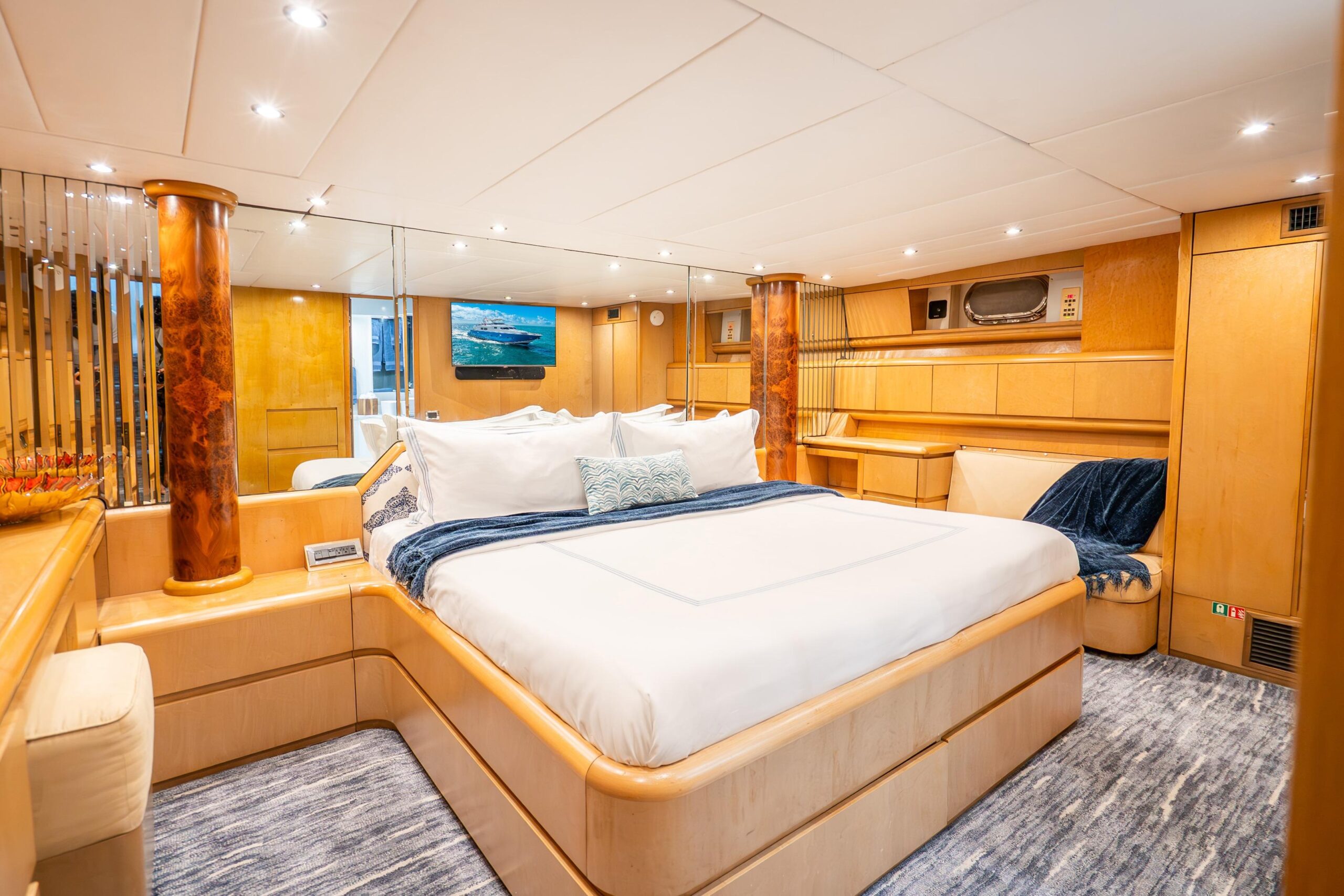

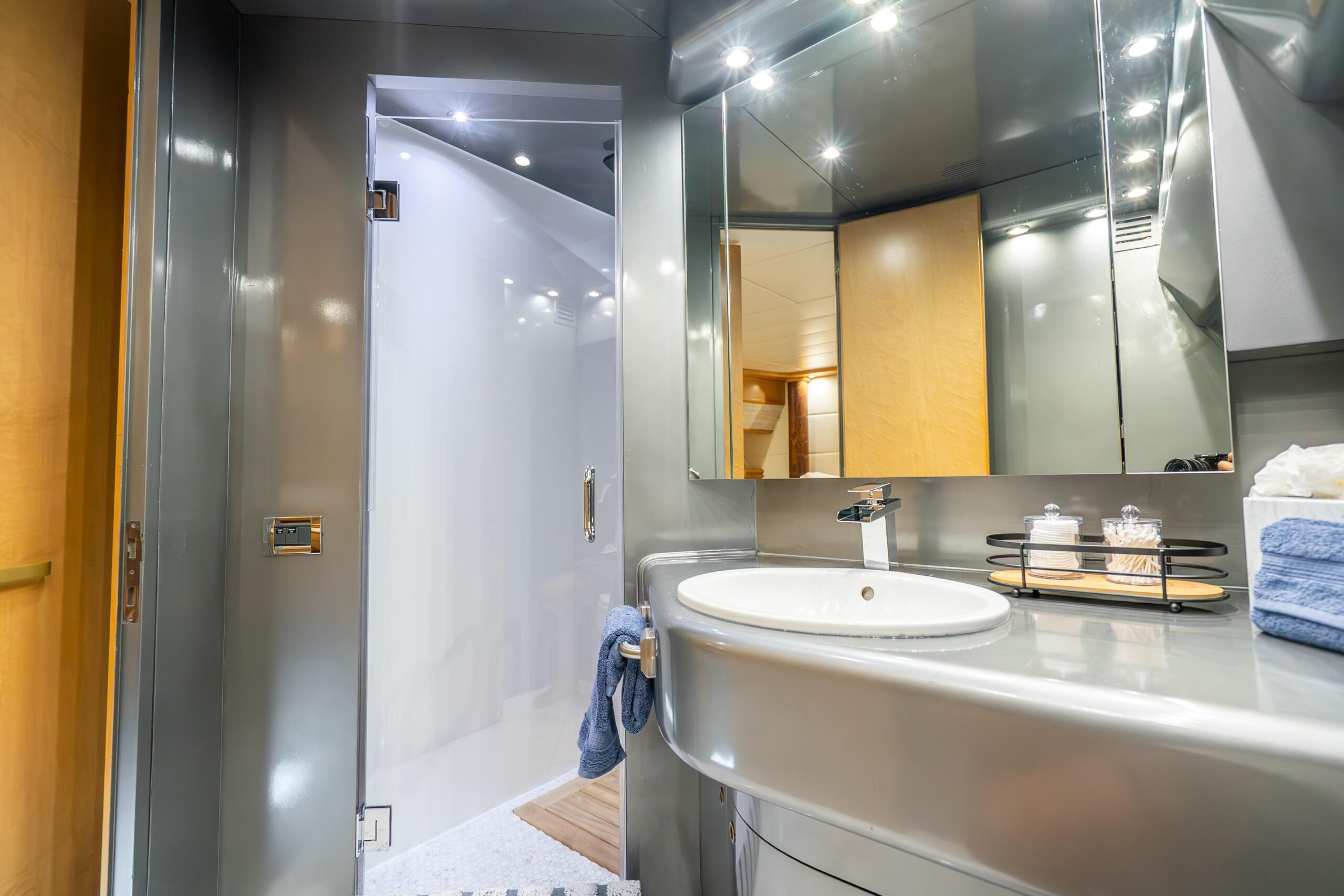

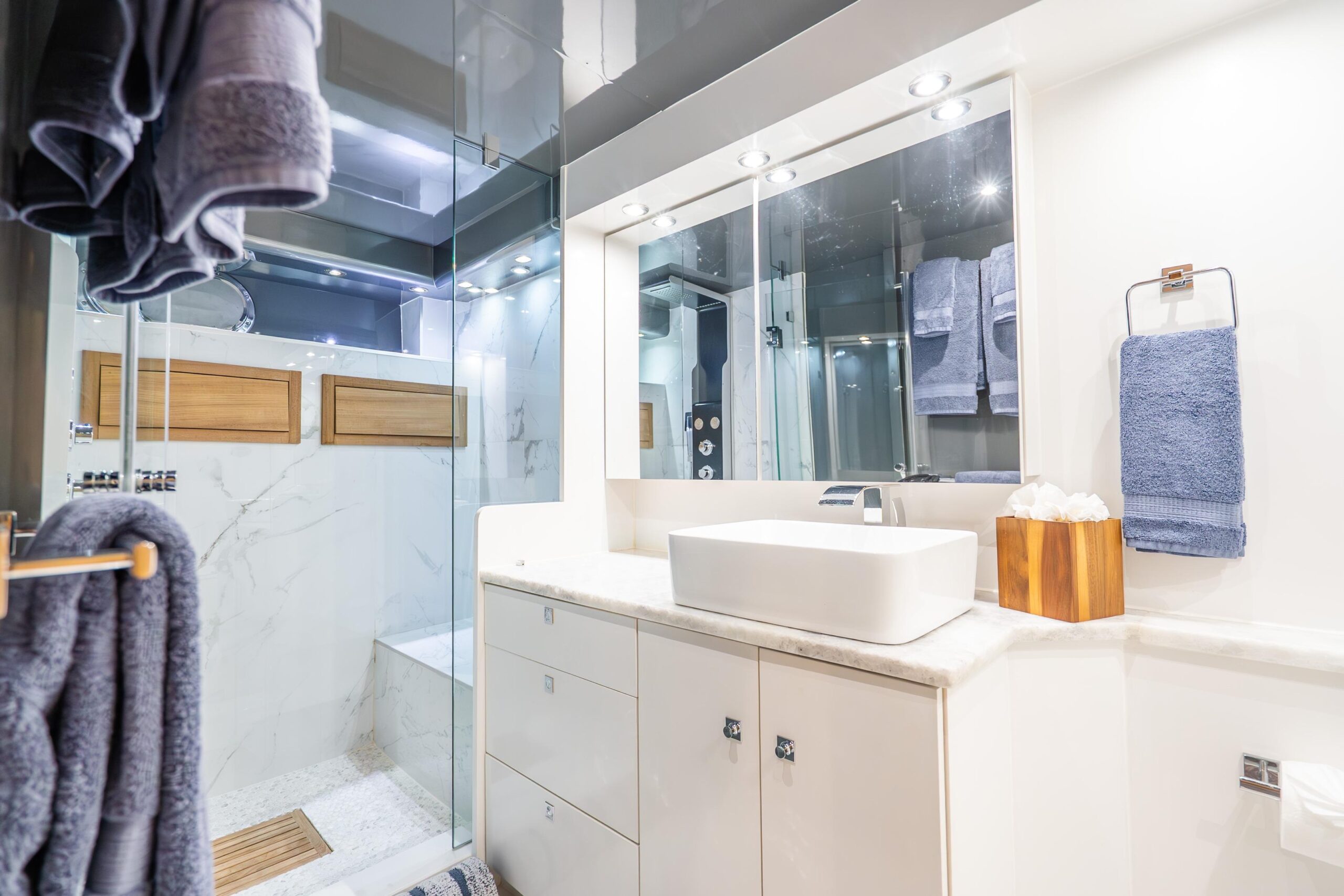

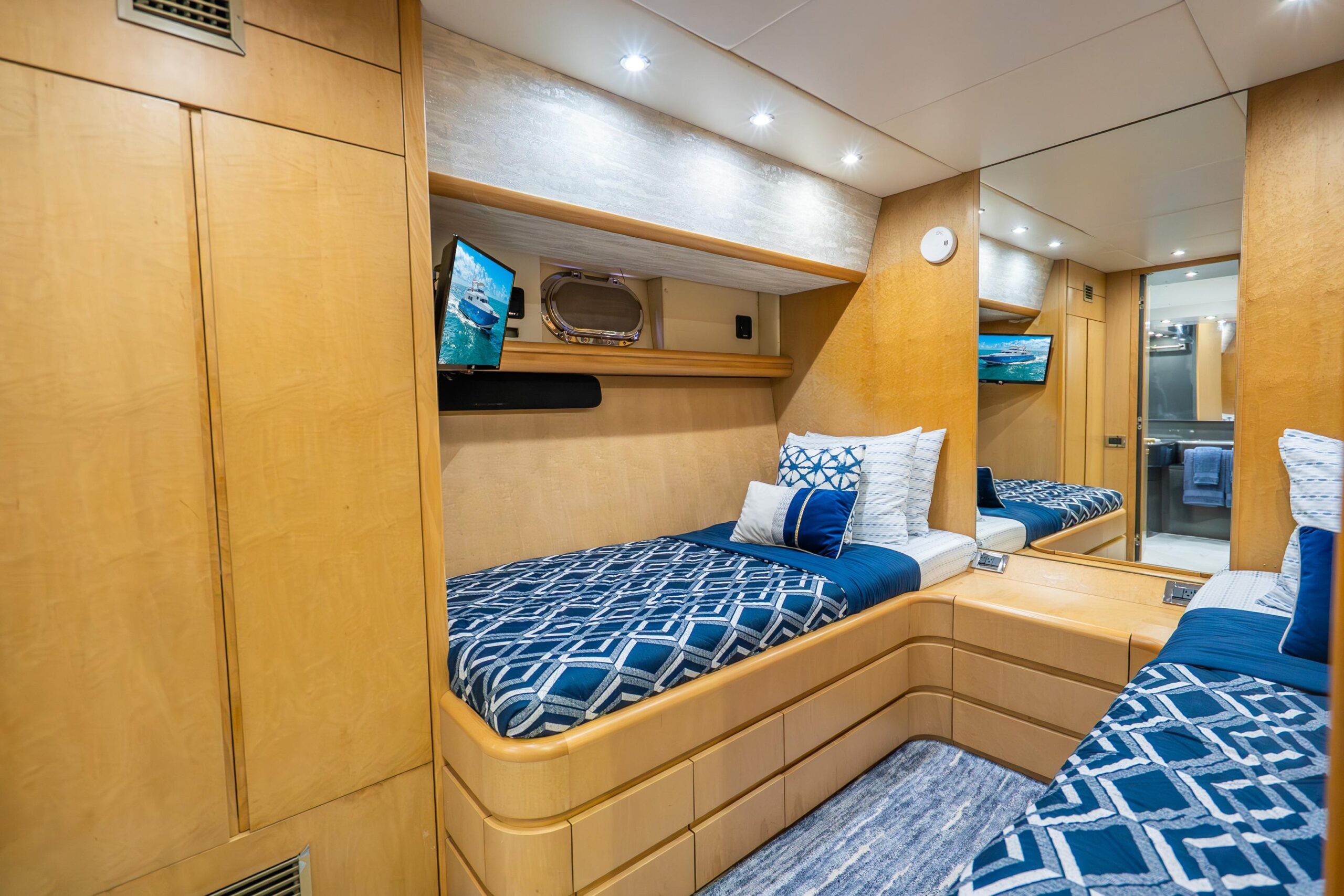

The yacht accommodates up to eight guests in the owner's party across four well-appointed staterooms, plus crew accommodations for two in one cabin. The Master cabin features a king-size bed, ensuite and Apple TV. The VIP stateroom includes a queen bed, ensuite and Apple TV. On the starboard side, there is a twin cabin with an ensuite and Apple TV, mirrored by another twin cabin on the port side offering the same amenities. The crew quarters provide comfortable accommodations for two, complete with an ensuite and Apple TV.
